Diode Dynamics Stage Series 30" LED Light Bar – White or Amber | Driving & Combo Beams
Light up every mile of the trail with the Diode Dynamics Stage Series 30" LED Light Bar, engineered for off-roaders, overlanders, and rally enthusiasts who demand the best in both performance and durability. Available in cool white (6000K) or amber (2000K) outputs and your choice of Driving or Combo beam patterns, this bar is built to dominate any terrain, in any weather.
Purpose-Built for Adventure
Inspired by professional rally drivers, the Stage Series light bar blends cutting-edge Total Internal Reflection (TIR) optics with high-intensity Lumileds LED chips to deliver maximum usable light with minimal glare. Every lumen is focused exactly where you need it — not wasted into the sky.
Despite its powerful output, the Stage Series keeps a low-profile 42mm housing, allowing it to fit tight front bumpers, roof racks, or grille openings where bulky dual-row bars can’t. The sleek, aerodynamic heatsink also reduces wind noise during highway runs.
Smart Optics, Real Function

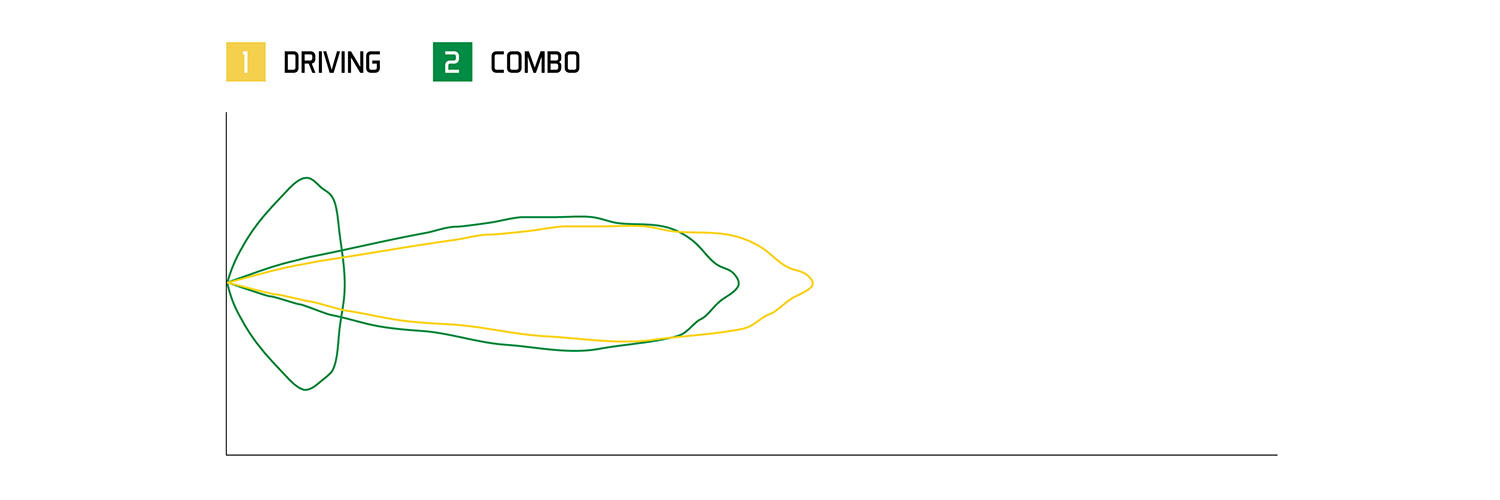

Every Stage Series beam pattern is optically simulated for a true functional beam:
- Driving Beam: Projects a 20°x8° rectangular pattern that throws light far downrange for high-speed visibility.
- Combo Beam: Combines driving and flood optics — focused center light with wide side illumination for trail edges or camp setups.
Switch to amber for fog, rain, or dusty convoys; run white for clear-sky visibility and maximum brightness.
Built for the Harshest Conditions
Crafted from a matte black, powder-coated aluminum extrusion, the Stage Series features individually sealed 6" lens segments for unbeatable weather resistance (IP69K waterproof). Each segment uses a double-wall seal, providing extra protection against water intrusion and making lens swaps quick and easy.
Backed by extensive SAE/DOT-standard testing for vibration, temperature, and corrosion, these lights have proven reliability on-road and in competition with top rally and endurance teams.
Installation Made Simple
Each kit includes a universal mounting bracket set, Deutsch DT connector, and 6" pigtail for plug-and-play integration. Compatible with 9–24V systems, the bar can be wired to any vehicle or connected via an optional Diode Dynamics harness.
With a low 31" × 3" × 1.63" footprint, it’s ideal for Toyota 4Runner, Tacoma, Bronco, Jeep, or any off-road rig needing powerful, compact lighting.
Specifications
| Lens Color/Optics | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|---|
| White Driving | 275,000 cd | 2,750 lux | 7,000 lm | 11,400 lm | 6000K White |
| White Combo | 217,000 cd | 1,690 lux | 7,000 lm | 11,400 lm | 6000K White |
| Amber Driving | 165,000 cd | 1,650 lux | 4,000 lm | 5,700 lm | 2000K Amber |
| Amber Combo | 113,800 cd | 1,014 lux | 4,000 lm | 5,700 lm | 2000K Amber |
Power: 137.2W Voltage: 9–24V Current: 9.8A @14V
Operating Temp: –40°F to 185°F Waterproof Rating: IP69K
Materials: Aluminum housing, polycarbonate lens, stainless hardware
In the Box
- (1) 30" Stage Series LED Light Bar (white or amber)
- (1) Universal bracket set
- (1) 6" Deutsch pigtail
- Mounting hardware: (2) M6 + (2) M5 hex screws
Warranty & Support
- 8-Year Limited Warranty (3-year full replacement + 5-year defect coverage)
- 30-Day Satisfaction Guarantee — no restocking fees
- Designed, engineered, and assembled in the USA
Why Choose the Stage Series
Whether you’re bombing down desert trails, lighting up backroads, or adding visibility to your overland rig, the Stage Series 30" bar provides the perfect balance of output, control, and reliability. Slim, stylish, and powerful, it’s the last light bar you’ll ever need.
