Product Description:
Meet the Diode Dynamics C2 2.0 SAE Yellow Pro LED Pods – the next generation of compact LED lighting for your Toyota 4Runner, overland rig, or off-road build.
Delivering up to 3,140 raw lumens per pod and engineered with advanced TIR optics, the C2 2.0 is a serious upgrade for bumper, A-pillar, ditch, or roof rack lighting. Whether you need an SAE-compliant fog light or high-performance driving beam, these pods are built to perform and designed to impress.

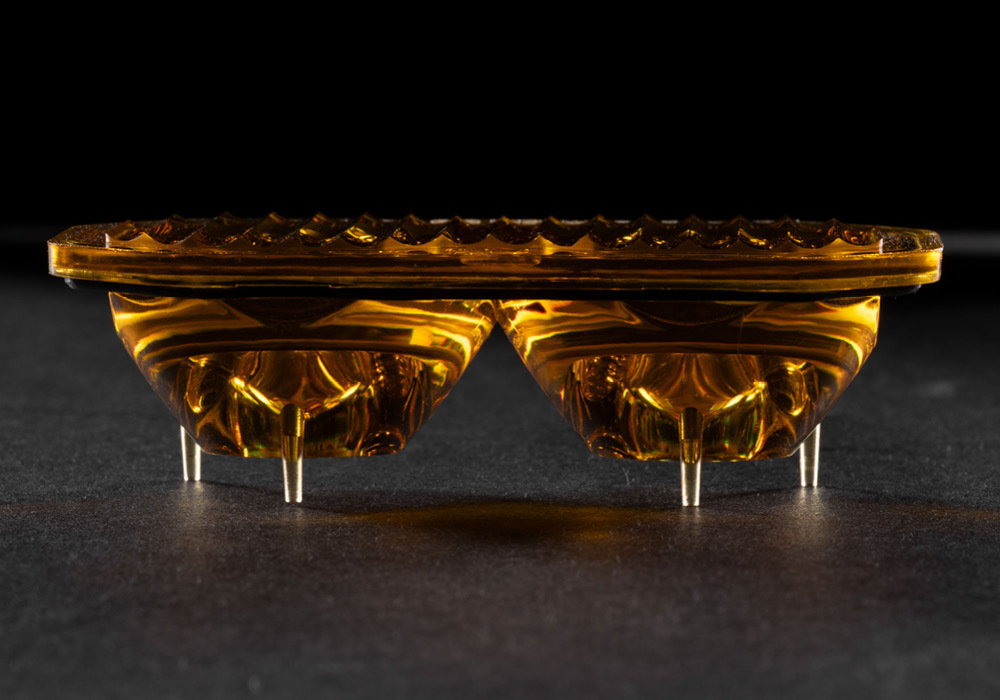

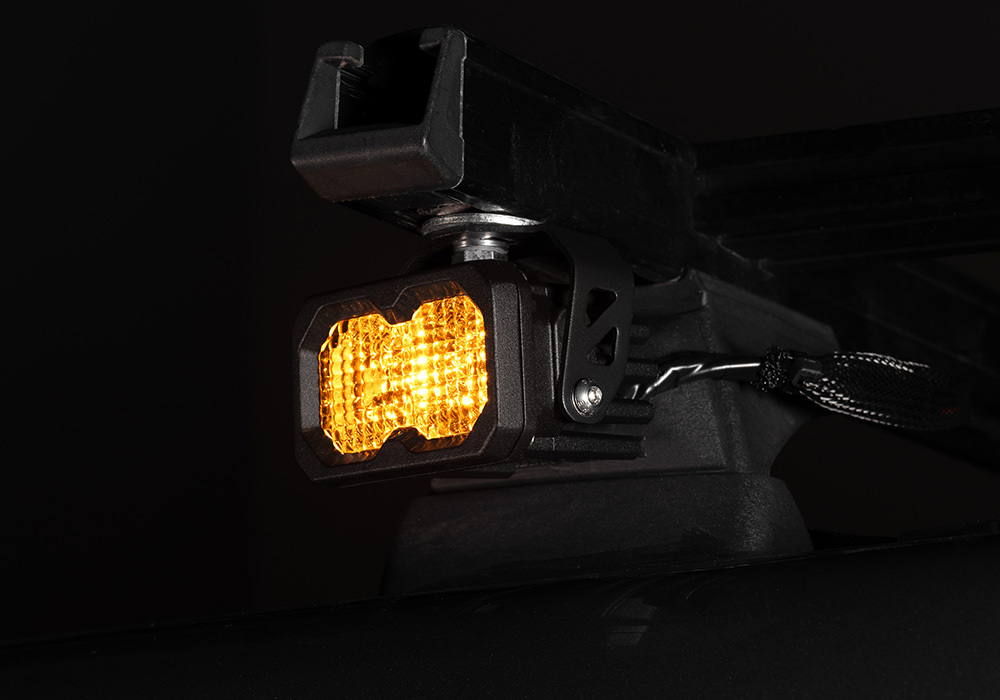

The patented Total Internal Reflection (TIR) lens focuses light exactly where it’s needed, reducing glare and maximizing usable output. The backlight feature adds an amber glow for added visibility and style—even when the main beam is off.
Choose from multiple beam patterns:
- SAE Fog/Wide – 90° wide low-beam street-legal fog
- Driving – 20° x 12° beam for high-speed clarity
- Combo/Driving – Balanced width + distance
- Flood – Even spread for campsites, trailers, or reverse lights
- Spot – Ultra-focused long-range beam
The Pro model features high-output automotive-grade LED chips and produces a max beam intensity of 3,140 lumens, with the signature 3000K yellow tint for improved visibility in rain, snow, fog, and dust. Built on a redesigned copper-core circuit board and passive cooling housing, the C2 2.0 stays cooler and brighter longer.
Ultra-durable, fully weather-sealed, and backed by a Limited Lifetime Warranty, the C2 2.0 is built to withstand your hardest adventures.
Key Features:
- ✅ 3,140 Lumens (Pro Model) – Blinding power in a tiny 2" pod
- ✅ 3000K Yellow Output – Perfect for fog, dust, and poor weather
- ✅ SAE-Compliant – Fog and Driving patterns street-legal in pairs (check local laws)
- ✅ Advanced TIR Optics – Directs all light with zero waste or glare
- ✅ Backlight Accent Feature – Amber glow when not in use
- ✅ Multiple Beam Patterns Available – Fog, Driving, Combo, Spot, Flood
- ✅ Compact & Universal Mounting – Fits bumpers, racks, ditch brackets
- ✅ IP67 Weatherproof Rated – Sealed for the trail, snow, and water crossings
- ✅ Made in the USA – Quality you can trust from Diode Dynamics
In the Box:
- Two (2) C2 2.0 SAE Yellow Pro LED Pods
- Two (2) Deutsch-style wire pigtails
- Two (2) Mounting brackets with hardware
- Install instructions
Product Specs:
- Raw Lumens: 3,140 lm
- Color Temp: 3000K Yellow
- Beam Options: SAE Fog/Wide, Driving, Combo, Flood, Spot
- Voltage: 9–30V
- Current Draw (12.8V): 1.8A
- Waterproof Rating: IP67
- Backlight Draw: 0.03A
- Dimensions (Each Pod): 2" x 3.3" x 2.4"
- Weight (Pair): 1.4 lbs
- Mounting: Universal – bumpers, racks, ditch brackets, roof
- Materials: Aluminum housing, polycarbonate lens, rubber gasket
- Compliance: SAE J575, SAE J583 (select patterns)
- Warranty: Limited Lifetime
- Made In: USA (with globally sourced materials)
