Description:
Whether you're outfitting your ditch lights, fog lights, or building a full auxiliary lighting setup, the Diode Dynamics SS3 Sport LED Pod Pair is the go-to entry-level lighting upgrade for any Toyota 4Runner owner. These compact 3” pods feature high-performance TIR optics that focus output more efficiently than standard reflectors, delivering up to 1,520 lumens per pod in a clean, functional beam.

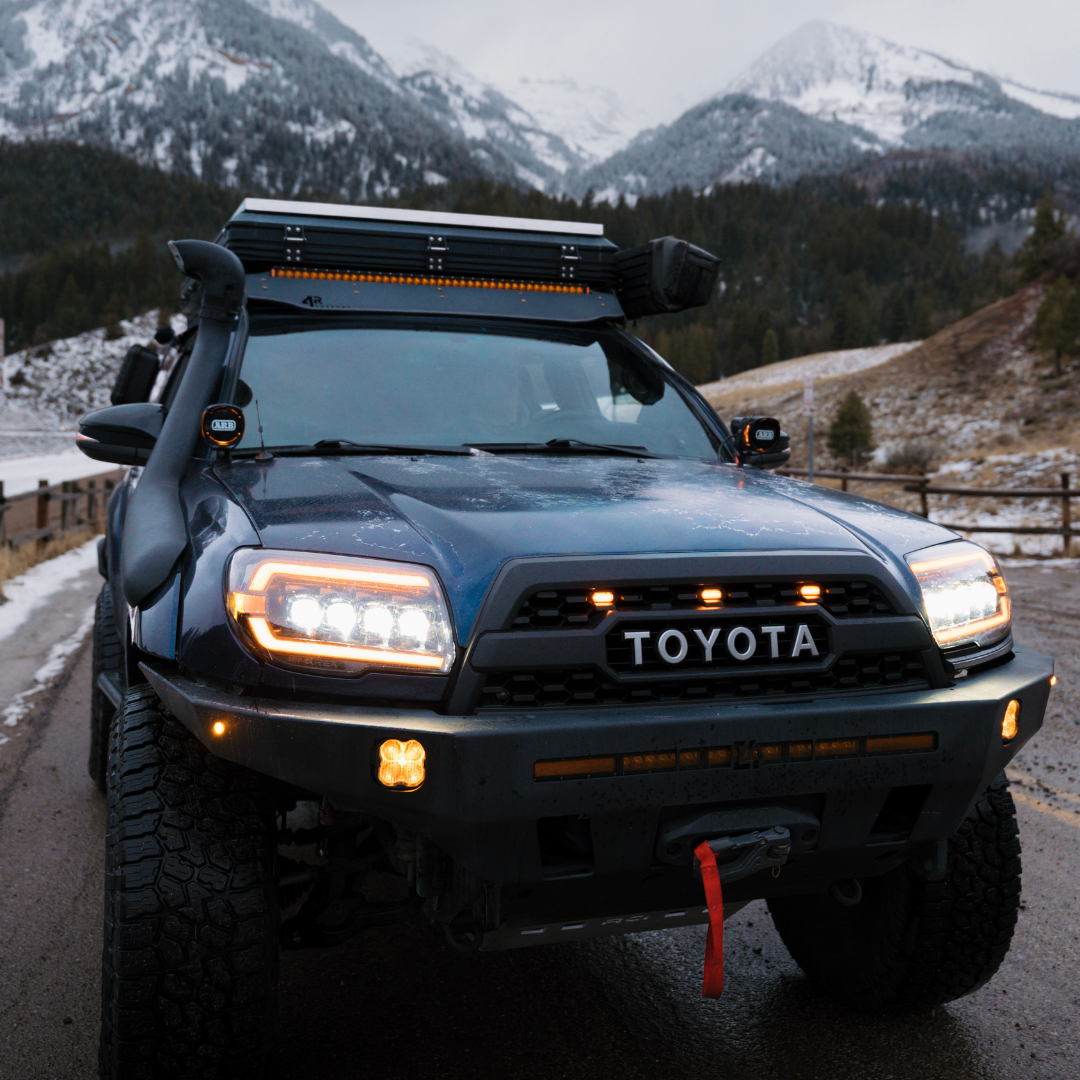

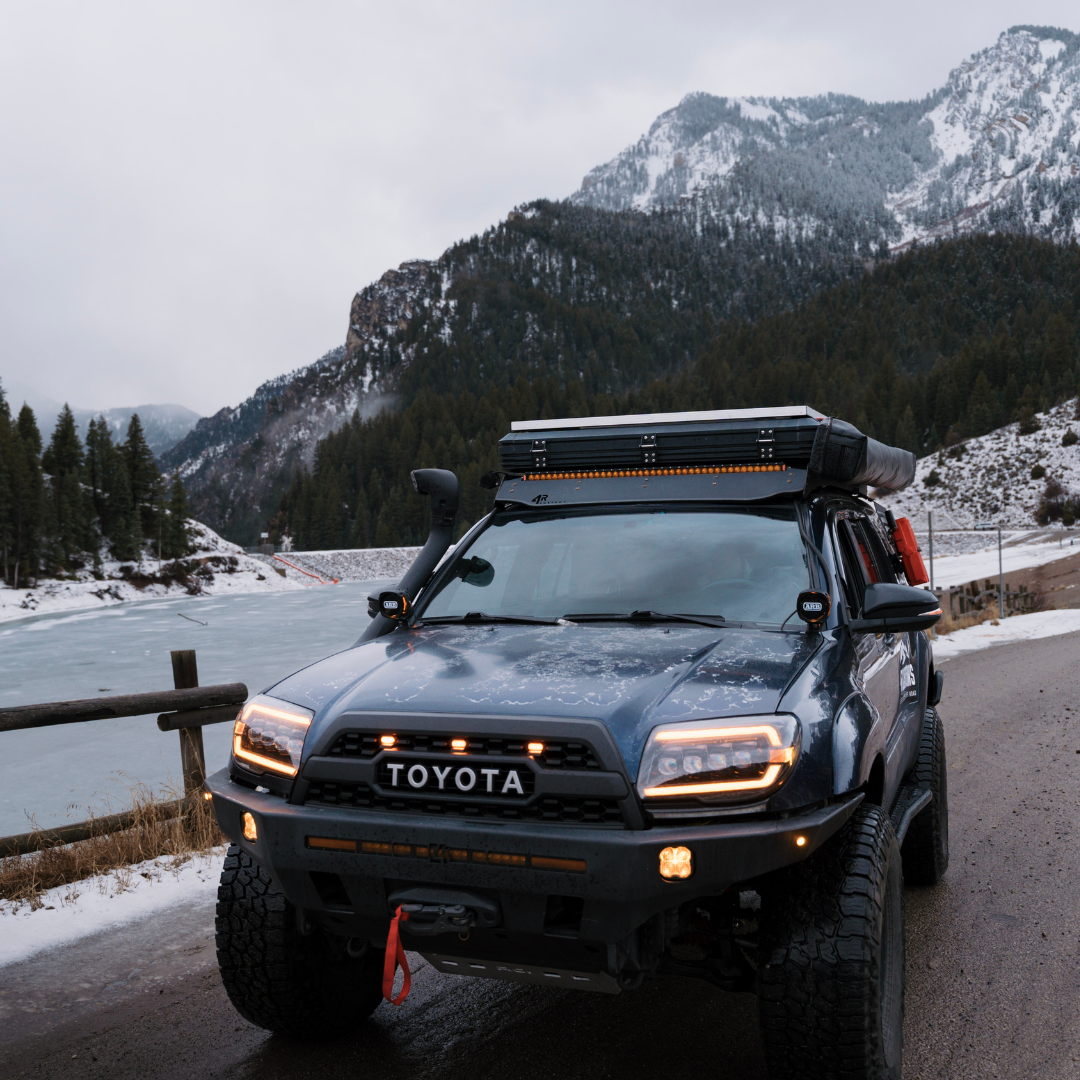

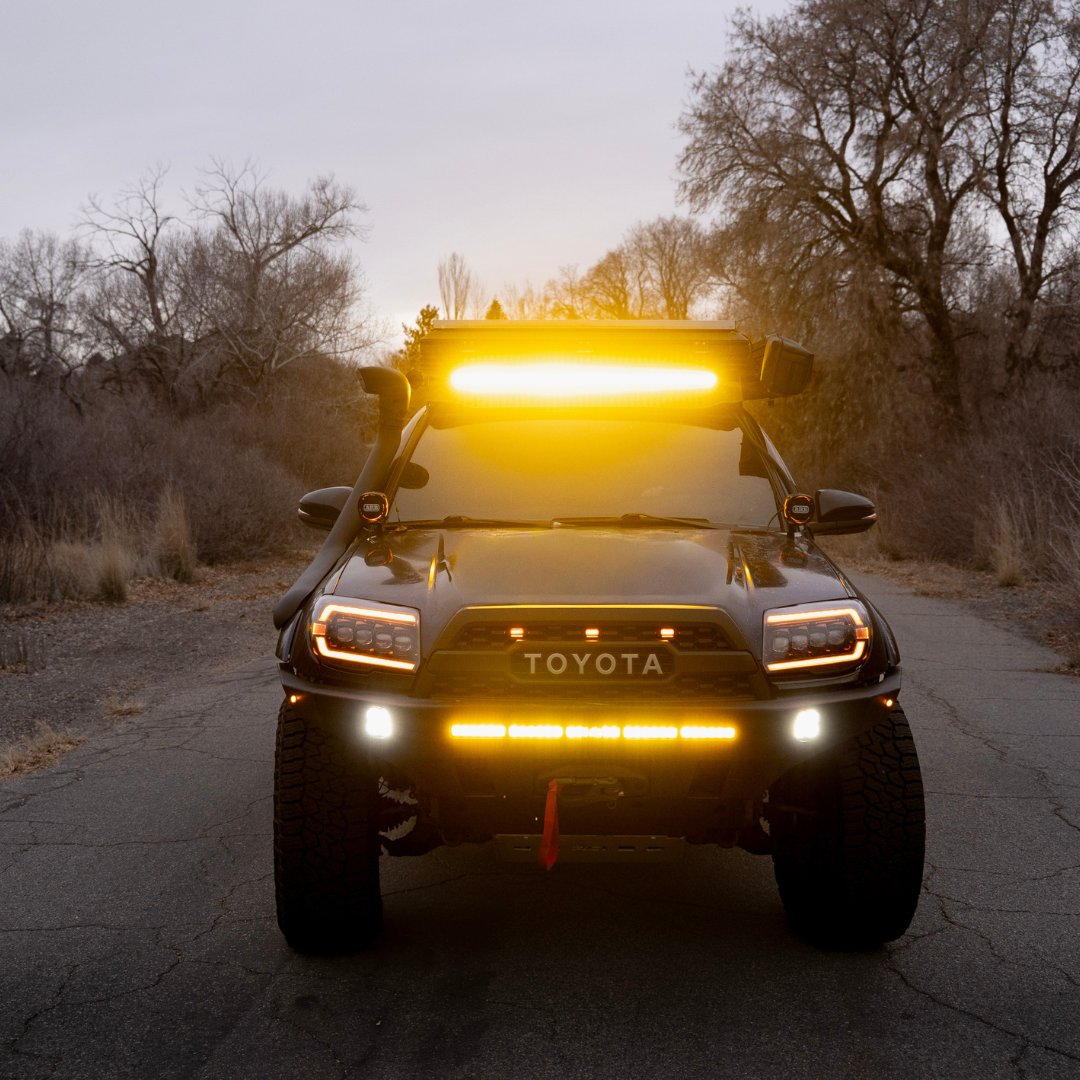

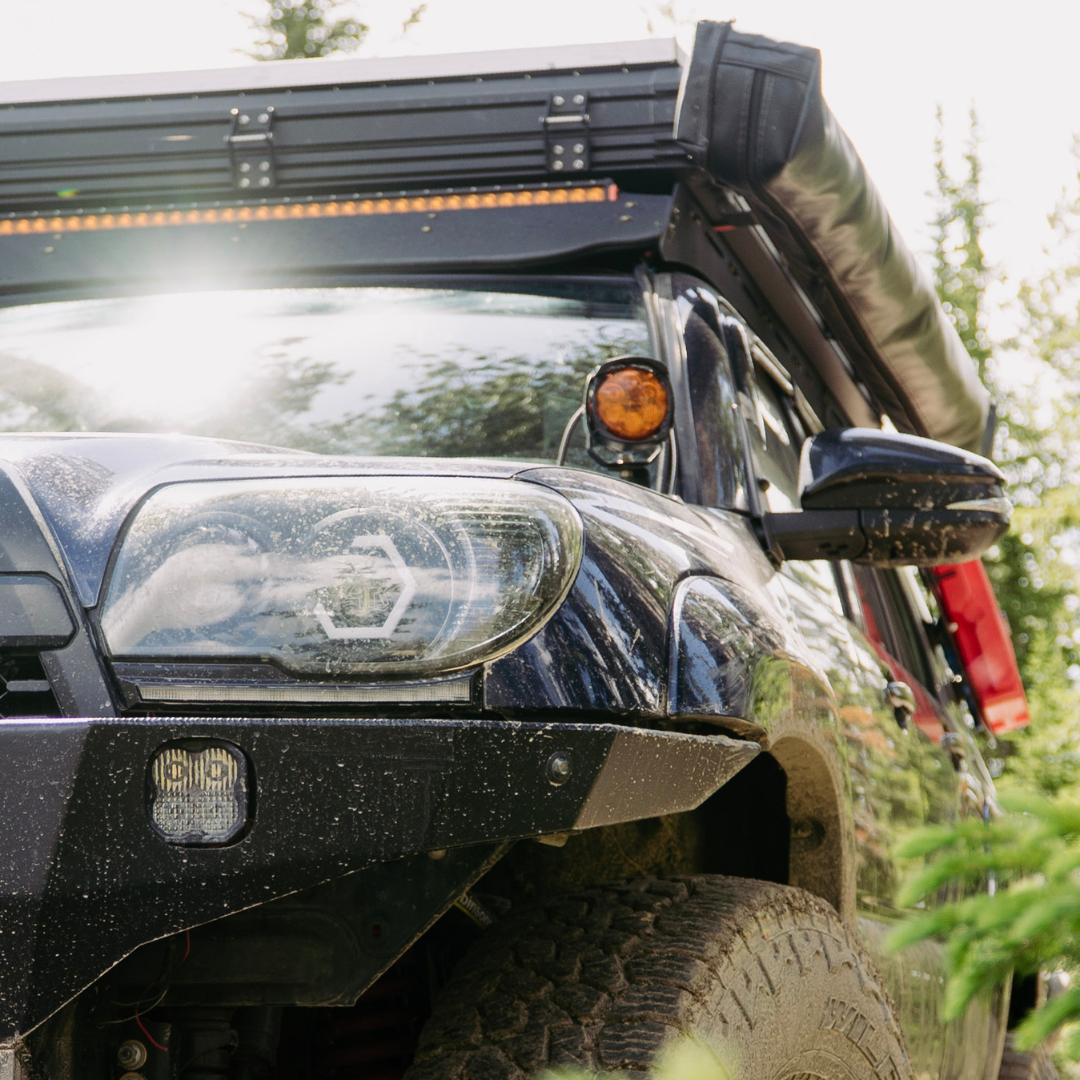

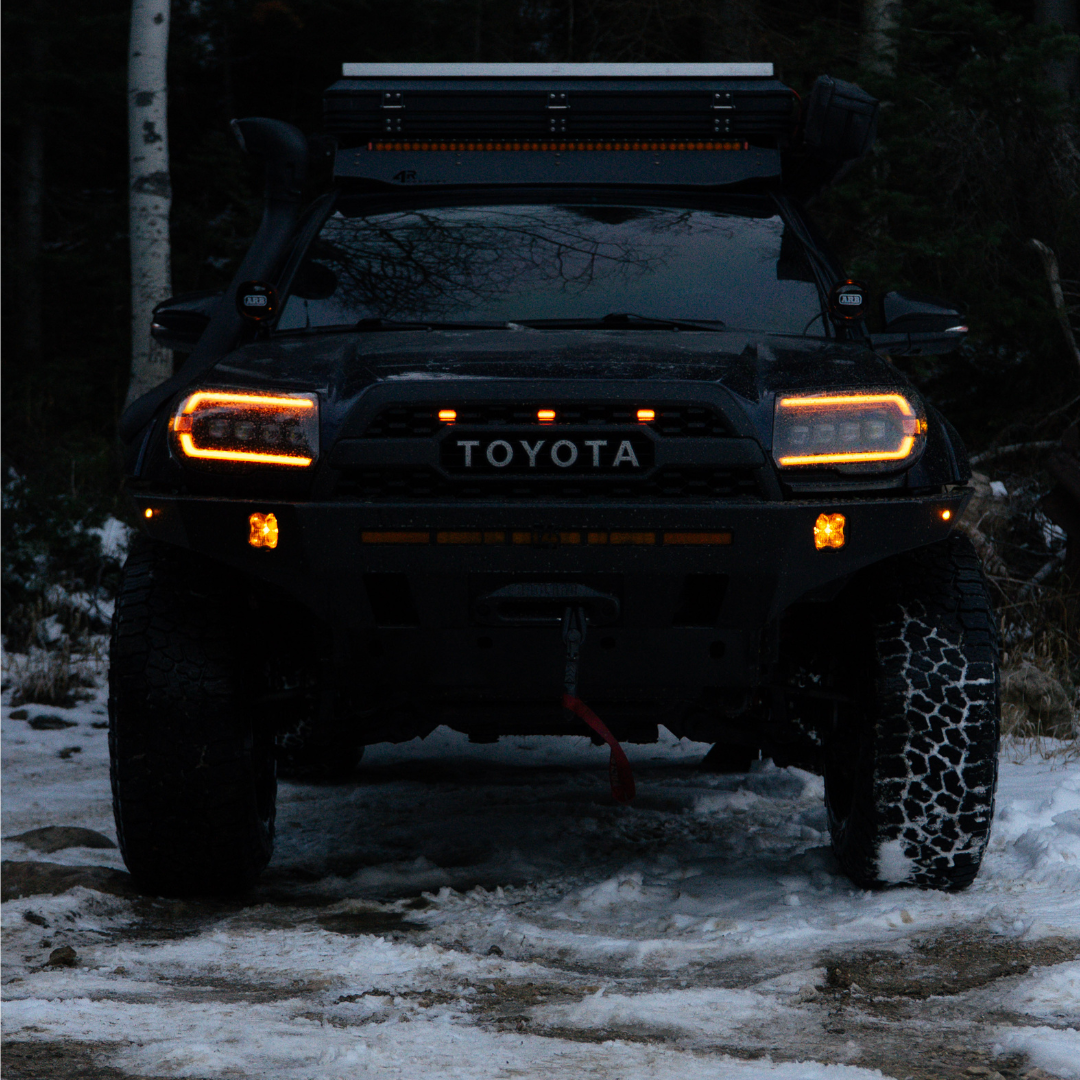

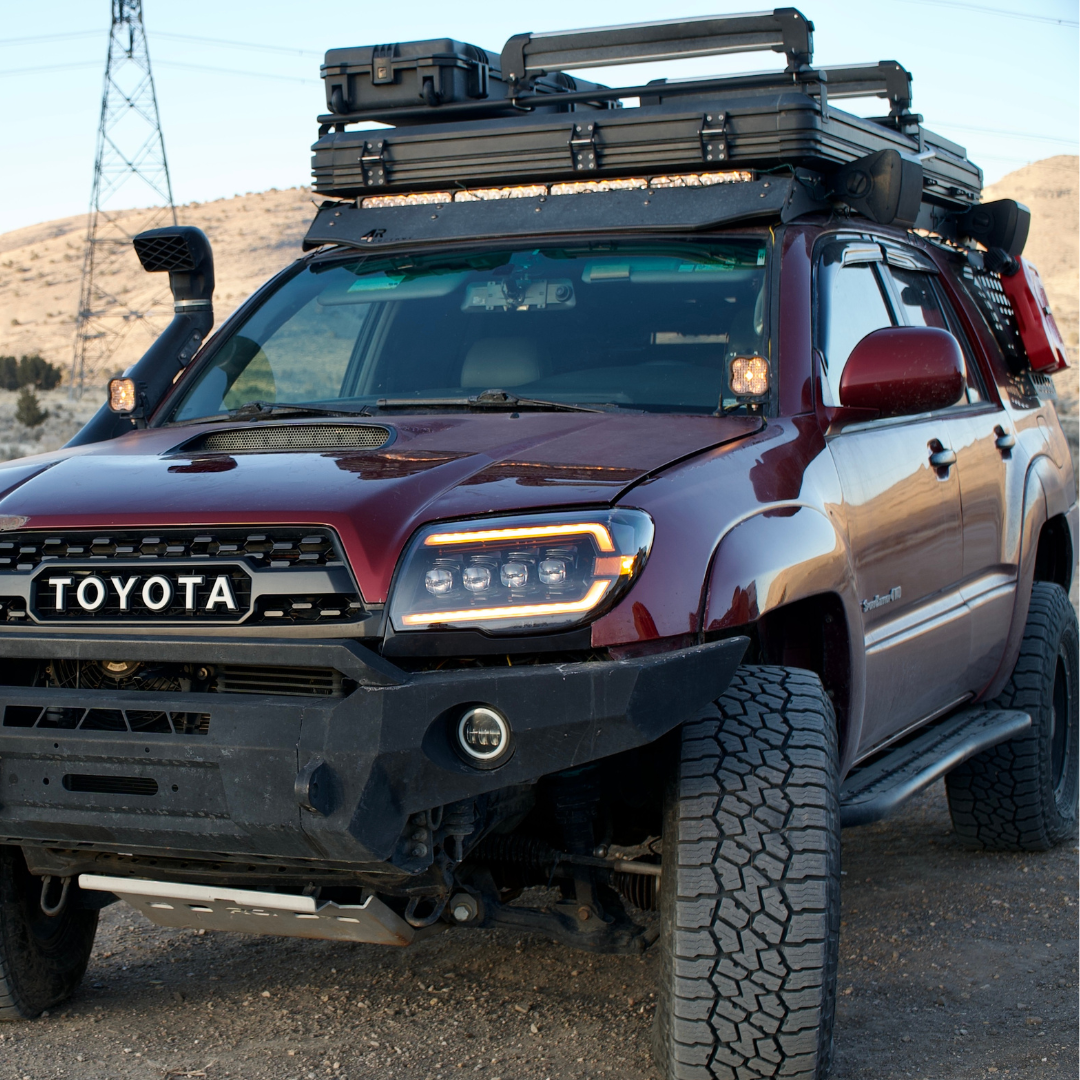

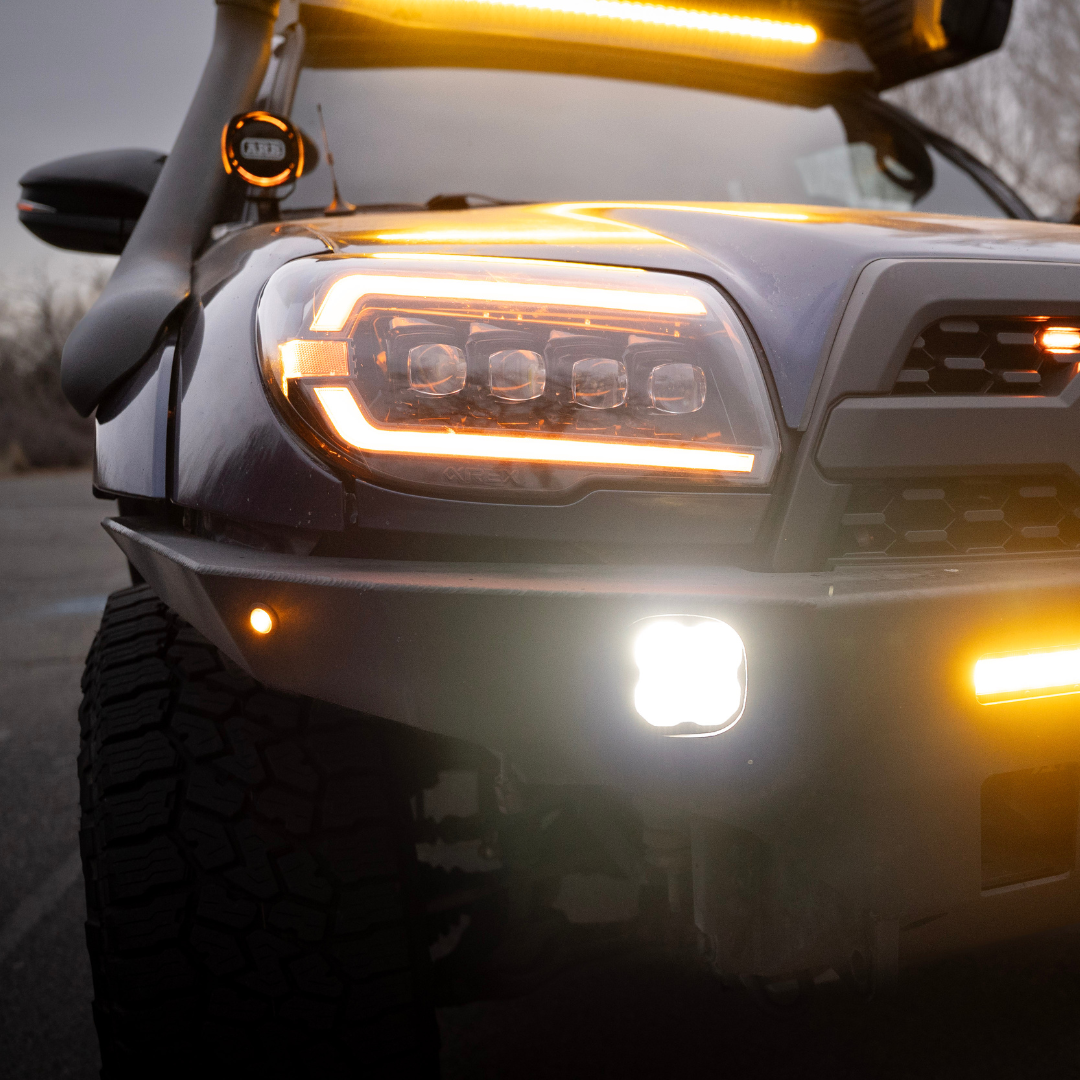

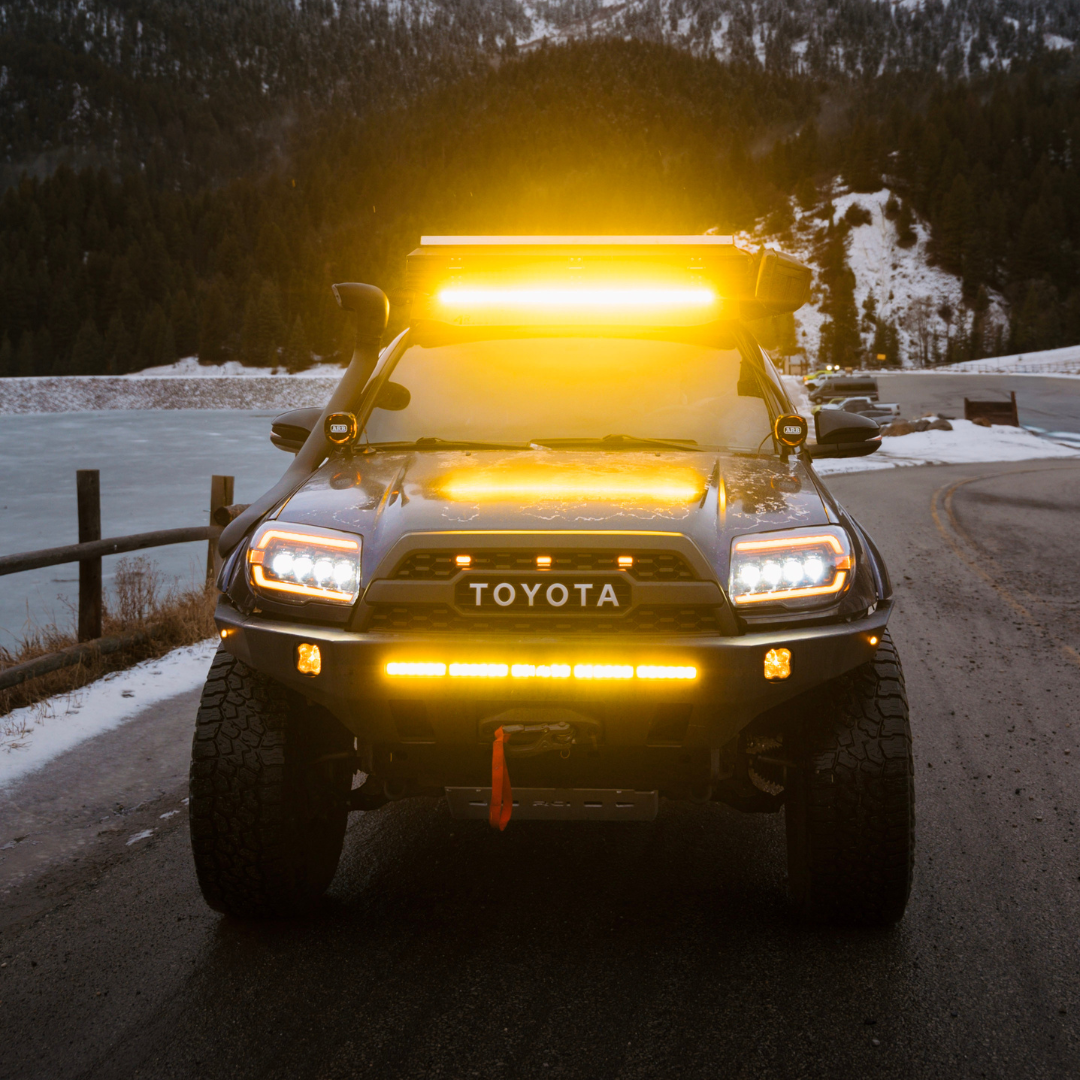

Mount them as ditch lights, use them as fog light replacements, or integrate them into your grille or bumper. Whether you're driving a 3rd Gen, 4th Gen, 5th Gen, or even the new 6th Gen 4Runner, these pods offer an unbeatable balance of price, performance, and trail reliability.
Choose from five functional beam patterns (SAE Fog, SAE Driving, Combo, Flood, or Spot), and accent your build with either amber or red backlighting to match your style.
Note: Red backlight, is only available with White lens SS3 LED pods.
What’s Included:
- (2) Diode Dynamics SS3 Sport 3” LED Pods
- (2) Deutsch-style wire pigtails
- (2) Universal mounting brackets & hardware
- Add optional wiring harness or 4Runner-specific brackets if needed
Pod Light Specs (Per Pod):
- Output: 1,520 lumens measured
- Power: 14.5W (main beam), 0.4W (backlight)
- Beam Options: SAE Fog, SAE Driving, Combo, Flood, Spot
- Housing: Powdercoated aluminum w/ passive cooling fins
- Connector: Deutsch DT
- IP Rating: IP69K Waterproof
- Operating Temp: -40°F to 185°F
- Dimensions: 3.3” x 3.3” x 2.4”
Why 4Runner Owners Love These Pods:
- Trail-Proven Performance – Great for entry-level off-road builds
- Ditch Light Ready – Compact housing with precise beam control
- SAE-Compliant Options – Street-legal Driving or Fog patterns
- Selectable Backlight – Choose Amber or Red for custom styling
- Rugged Durability – IP69K waterproofing and high-temp tested
- USA Built – Designed, assembled, and tested in the United States
Perfect for All 4Runner Generations:
- 3rd Gen 4Runner (1996–2002)
- 4th Gen 4Runner (2003–2009)
- 5th Gen 4Runner (2010–2024)
- 6th Gen 4Runner (2025+)
Lens Color/Optics | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
---|---|---|---|---|---|
Driving Sport | 54,700 cd | 547 lux | 1,520 lm | 2,262 lm | 6000K White |
Driving Pro | 66,500 cd | 665 lux | 3,000 lm | 5,796 lm | 6000K White |
Driving Max | 98,000 cd | 980 lux | 3,500 lm | 7,920 lm | 6000K White |
Flood Sport | 1,750 cd | 18 lux | 1,520 lm | 2,262 lm | 6000K White |
Flood Pro | 3,100 cd | 31 lux | 3,000 lm | 5,796 lm | 6000K White |
Flood Max | 2,600 cd | 26 lux | 3,500 lm | 7,920 lm | 6000K White |
Fog Sport | 10,600 cd | 106 lux | 1,520 lm | 2,262 lm | 6000K White |
Fog Pro | 11,900 cd | 119 lux | 3,000 lm | 5,796 lm | 6000K White |
Fog Max | 18,000 cd | 180 lux | 3,500 lm | 7,920 lm | 6000K White |
Spot Sport | 151,000 cd | 1,510 lux | 1,520 lm | 2,262 lm | 6000K White |
Spot Pro | 131,500 cd | 1,315 lux | 3,000 lm | 5,796 lm | 6000K White |
Spot Max | 251,000 cd | 2,510 lux | 3,500 lm | 7,920 lm | 6000K White |
Combo Sport | 31,500 cd | 315 lux | 1,520 lm | 2,262 lm | 6000K White |
Combo Pro | 35,100 cd | 351 lux | 3,000 lm | 5,796 lm | 6000K White |
Combo Max | 46,000 cd | 460 lux | 3,500 lm | 7,920 lm | 6000K White |
Lens Color/Optics | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
---|---|---|---|---|---|
Driving Sport | 53,500 cd | 535 lux | 1,300 lm | 1,930 lm | 3000K Yellow |
Driving Pro | 60,900 cd | 609 lux | 2,700 lm | 5,220 lm | 3000K Yellow |
Flood Sport | 1,600 cd | 16 lux | 1,300 lm | 1,930 lm | 3000K Yellow |
Flood Pro | 2,850 cd | 29 lux | 2,700 lm | 5,220 lm | 3000K Yellow |
Fog Sport | 9,050 cd | 91 lux | 1,300 lm | 1,930 lm | 3000K Yellow |
Fog Pro | 10,900 cd | 109 lux | 2,700 lm | 5,220 lm | 3000K Yellow |
Fog Max | 12,500 cd | 125 lux | 3,500 lm | 7,920 lm | 3000K Yellow |
Spot Sport | 149,000 cd | 1,490 lux | 1,300 lm | 1,930 lm | 3000K Yellow |
Spot Pro | 118,500 cd | 1,185 lux | 2,700 lm | 5,220 lm | 3000K Yellow |
Combo Sport | 28,100 cd | 281 lux | 1,300 lm | 1,930 lm | 3000K Yellow |
Combo Pro | 33,406 cd | 334 lux | 2,700 lm | 5,220 lm | 3000K Yellow |
