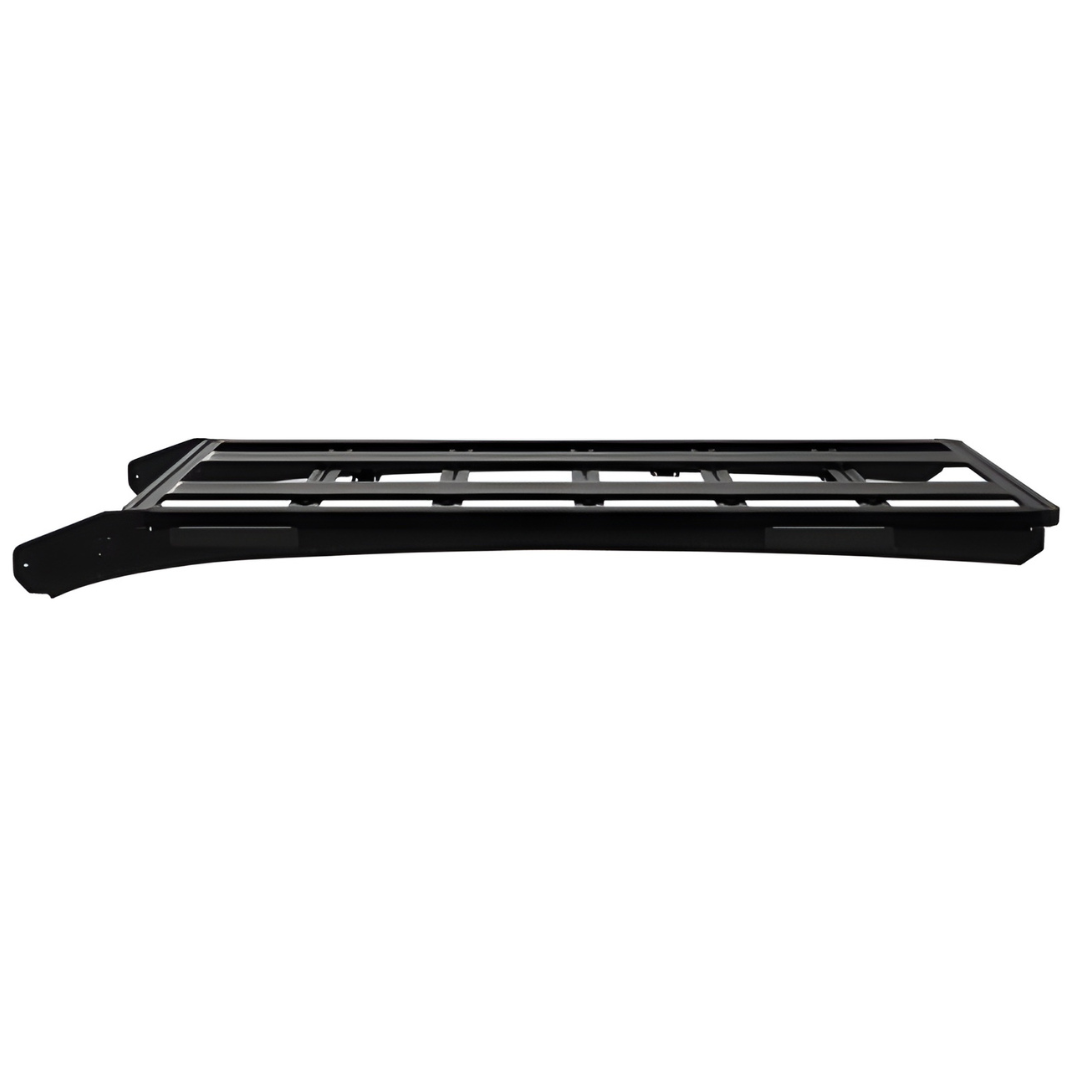

The KC HiLiTES Platform One™ Roof Rack is a premium, hybrid-style modular roof rack engineered specifically for the 2025+ Toyota 4Runner (6th Gen). Designed for adventurers who demand strength, simplicity, and clean integration, the PL1 combines the rugged utility of a full platform rack with the sleek, contoured fit of a precision-formed sheet-metal side rail system.
Built in Arizona using over 90% U.S.-sourced materials, the PL1 features proprietary aluminum extrusions, extruded crossbars, and CNC-cut sheet metal rails. Its patent-pending Power-Ready™ structure includes integrated wiring channels for side lights, roof lighting, solar panels, and future accessories—no drilling, splicing, or hacky installs required.
The Platform One rack mounts directly to the factory roof points using KC’s custom bumpstop tensioning system that maintains long-term structural rigidity, even in off-road, high-vibration environments. With a low-profile 3.75" overall height and an 88"x48" platform footprint, it offers stability for rooftop tents, MaxTrax, Pelican cases, lighting bars, and overland gear.

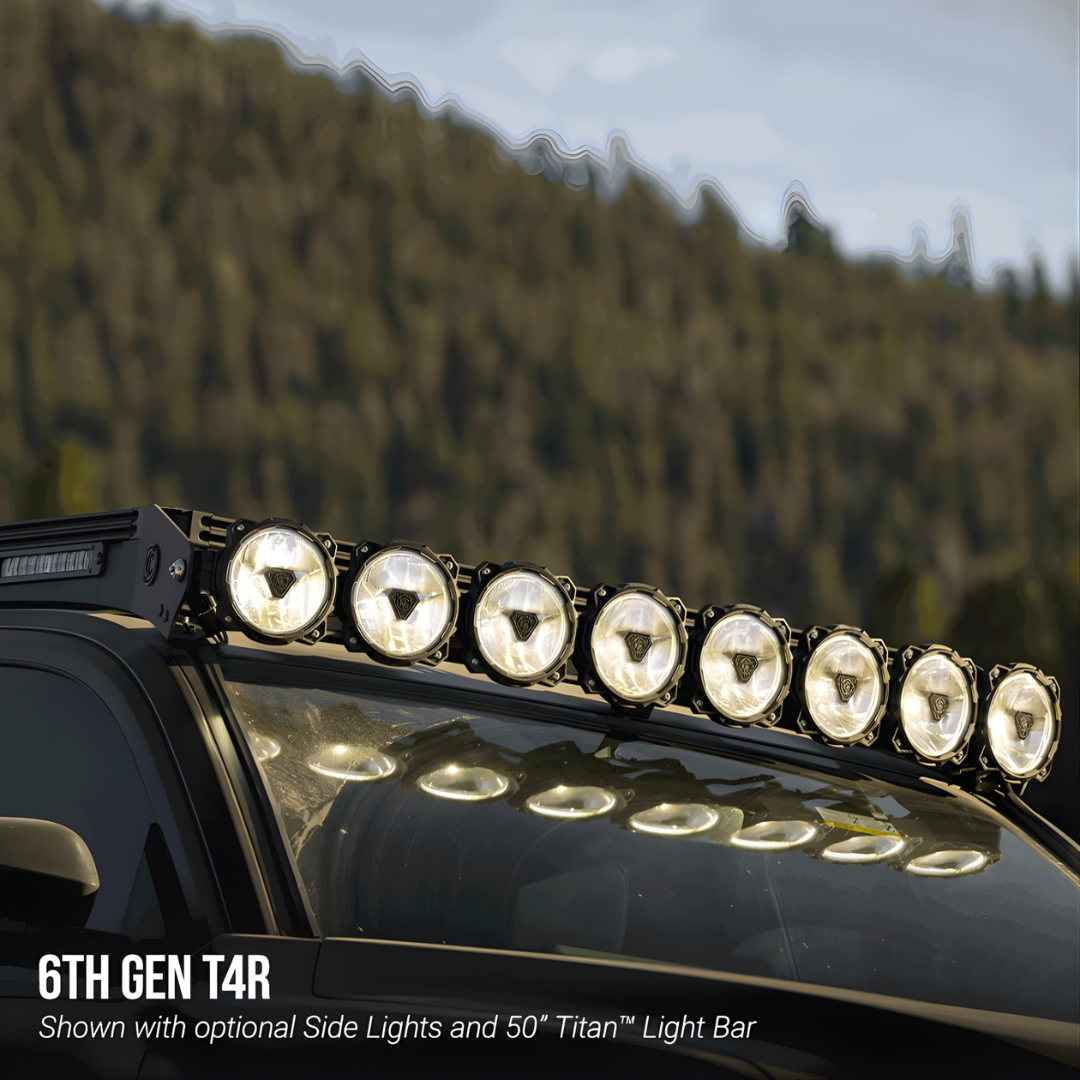

Compatible with KC’s Gravity® Titan™ (SKU 91418), Pro6® (SKU 91308) overhead light bars, and up to four Profile 10" SideCast™ flush-mount lights, the rack supports a complete 360° lighting system.
No drilling. No permanent modifications. 100% bolt-on.
Overhead Light Bar Comparison (Required for PL1 Rack)
The PL1 rack is designed to work only with an overhead KC light bar. You can choose between Gravity® Titan™ (newest generation) or the Gravity® Pro6 (classic modular).
Use the table below to compare brightness, beam distance, features, and price.
Light Bar Comparison Table
| Feature | 50" Gravity® Titan™ – 8 Light | 50" Gravity® Pro6 – 8 Light |
|---|---|---|
| Total Lumens | 23,776 lm | 20,064 lm |
| Total Lux | 10,205 lx | 5,824 lx |
| Total Wattage | 89.6W (Amber) / 315.84W (White) | 170.88W |
| Total Amp Draw | 7.47a (Amber) / 26.32a (White) | 14.24a |
| Beam Pattern | Combo | Combo |
| Beam Distance | 1,010 m | 763 m |
| Technology | Titan Core w/ 3-Source LEDs, Pass-Through Cooling, Amber Dust Mode | Gravity® LED G6 Inserts, Infinity Ring™ Modular System |
| Housing | Streamlined, non-modular body | Fully modular, linkable, adjustable curvature |
| Dual Power Modes | Amber Dust Light + High-Power White | High Output Only |
| Best For | Max brightness, longest throw, dust + desert use | Classic look, modular shape, versatile setups |
| Included | 8 Light Bar, Covers, Plug-N-Play Harness, 3-Position Switch, Bumpstop | Same: Bar, Covers, Plug-N-Play Harness, LED Switch, Bumpstop |
| Price | Higher (premium model) | Slightly lower |
Which Light Bar Should You Choose?
Choose the Gravity® Titan™ if you want:
- The brightest and longest-throwing light bar KC makes
- A modern, streamlined look
- Amber Dust Light Mode for trail, convoy, or desert conditions
- Stronger output for high-speed night driving
- The newest KC optical technology (Titan Core + 3-Source LED Optics)
Best for:
Overlanding, Baja-style driving, big visibility improvements, modern builds.
Choose the Gravity® Pro6 if you want:
- The iconic KC look with modular Infinity Rings™
- Ability to curve or straighten the bar
- Classic performance with impressive distance and spread
- Lower amp draw compared to Titan
- A timeless round-light appearance
Best for:
Traditional off-road builds, curved racks, modular customization.
Key Features & Benefits
- 6th Gen 4Runner Specific Fitment
Designed exclusively for the new 2025+ 4Runner cab profile with precision-cut, contoured side rails. - Hybrid Platform + Sheet Metal Construction
Strong, quiet, aerodynamic, and modular—built for both daily driving and long-distance off-road travel. - Power-Ready™ Wiring Channels
Integrated raceways for clean lighting and solar wiring installs with no exposed cables. - 360° Lighting Compatibility
Works with KC Gravity Titan, KC Pro6 overhead light bars, and up to four flush-mount SideCast units. - 100% Bolt-On Install
No drilling; mounts to OEM factory points using KC’s bumpstop tensioning system. - Rooftop Tent Ready
Supports RTTs, cargo boxes, recovery gear, and heavy overland loadouts. - Made in the USA
Engineered and manufactured in Arizona with 90%+ domestic materials.
What’s Included
- (1) Platform One™ Roof Rack
- (4) Sidelight Delete Plates
- Installation Hardware
- Factory Mounting Adapters
- Instructions
Tech Specs
| Specification | Value |
|---|---|
| Color | Black |
| Finish | Semi-gloss Black Powder Coat |
| Material | ADC12 aluminum, extruded aluminum |
| Mounting Method | Factory Roof Mount |
| Platform Length | 88.0 in |
| Platform Width | 48.0 in |
| Rack Height | 3.75 in |
| Platform Weight | 74.8 lbs |
| Assembled Rack Weight | 89.54 lbs |
| Sunroof Compatible | Yes |
| Prop 65 | Yes (CR) |
Fitment
- 2025+ Toyota 4Runner (6th Gen)
Works on all trims equipped with factory roof mounting points.
